OS3 Slot Car Parts
(Immediate payment required
US and Canadian Addresses only.)

To pay with money order or check
or for foreign orders
Click here for the manual order form





OS3

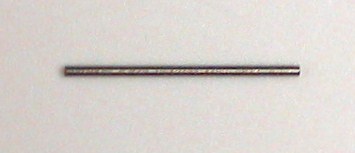

Tungsten Axle
$2.95
Out of Stock




Tungsten Axle

0.0635"
Non-magnetic
1.27 g



OS3
HSS Axle
$1.95

HSS Axle

0.0635"
Magnetic
.54 g



OS3
Titanium Axle
$2.45
Out of Stock

Titanium Axle

0.0635"
Non-magnetic
.3 g

OS3
Axle Retainers
$1.50 (pr)

Out of Stock

Axle Retainer (pr)




OS3

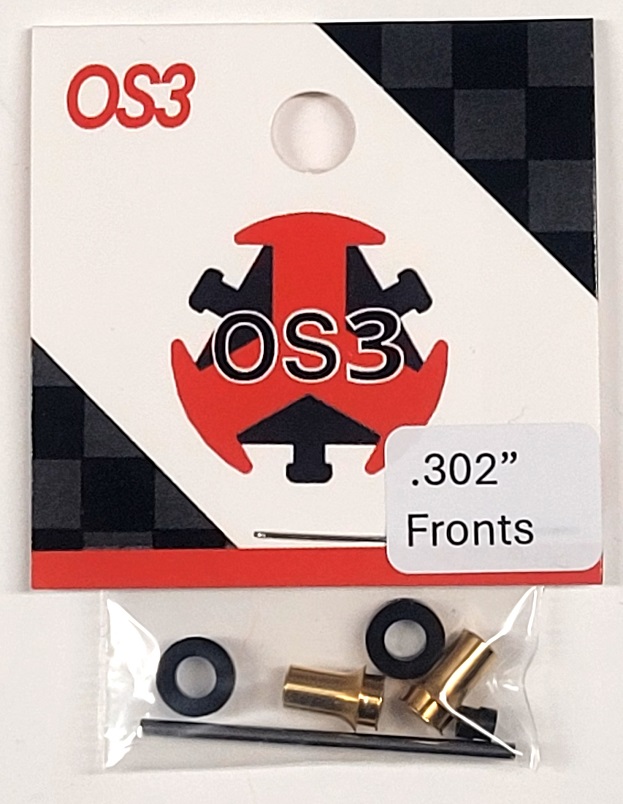

Weighted Front End Sets
$9.95
Out of Stock

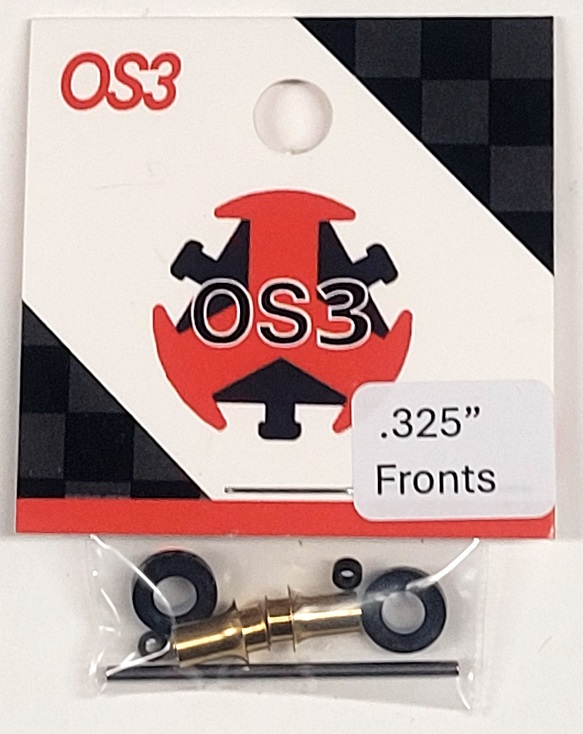

OS3 Weighted Front End set

with weights and 0.0635" tungsten axle

OS3
Anchors w/ Tires
$23.95
Out of Stock

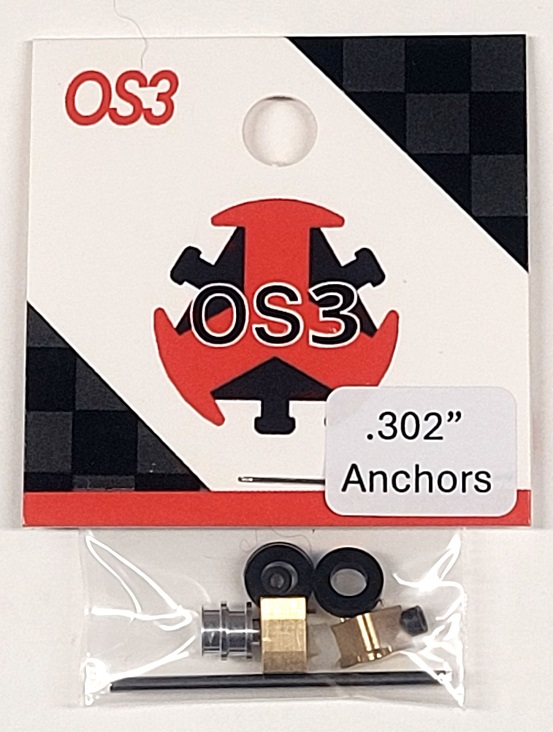

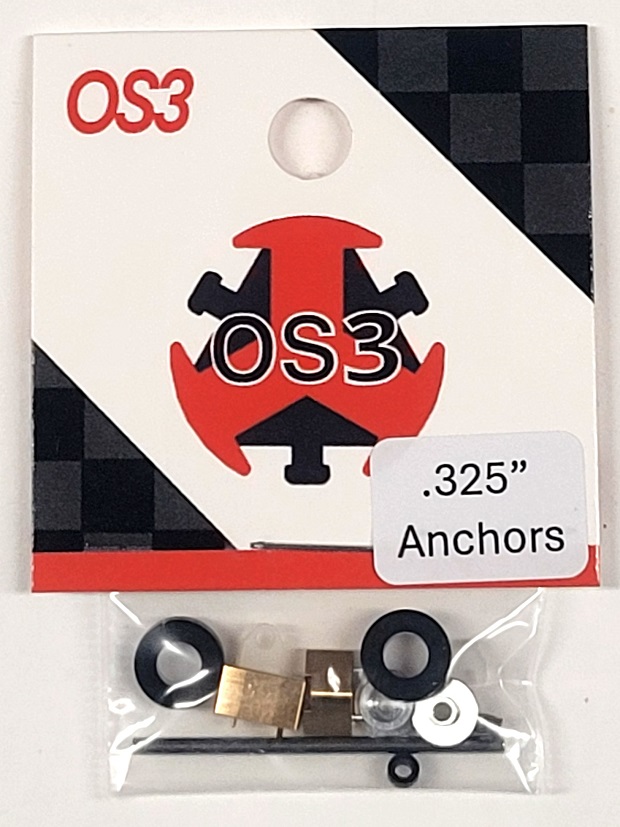

OS3 Anchors w/ Tires

OS3 Anchors is an adjustable weight T-Jet front end set.  It features low weight, minimal rotational mass and a wide stance.
Total width is adjustable via weight/spacer gap preventing the requirement for physical spacers.
All weighted pieces are "locked" into position for reduced rotating weight.   It can be used in the long or short wheelbase position.
The minimum recommended tire size is .310", rail height dependent.  Fray, Quarrel, ECHORR and Challenge approved!!


OS3
Anchors w/o Tires
$22.95
Out of Stock



OS3 Anchors w/o Tires

OS3 Anchors is an adjustable weight T-Jet front end set.  It features low weight, minimal rotational mass and a wide stance.
Total width is adjustable via weight/spacer gap preventing the requirement for physical spacers.
All weighted pieces are "locked" into position for reduced rotating weight.   It can be used in the long or short wheelbase position.
The minimum recommended tire size is .310", rail height dependent.   Fray, Quarrel, ECHORR and Challenge approved!!


OS3
Nitro 95 Resistor
$20.00
Out of Stock

OS3 Nitro 95 Resistor

Nitro resistors feature a progressive two-stage wrap, providing excellent slow speed control with rapid midrange acceleration eliminating the slow response.
Made with one continuous wire, so there are no gaps in the power band.   They have fresh tabs for easy mounting and ground,
feathered and smoothed metal bands for extremely smooth trigger action.


OS3
Nitro 120 Resistor
$20.00
Out of Stock



OS3 Nitro 120 Resistor

Nitro resistors feature a progressive two-stage wrap, providing excellent slow speed control with rapid midrange acceleration eliminating the slow response.
Made with one continuous wire, so there are no gaps in the power band.   They have fresh tabs for easy mounting and ground,
feathered and smoothed metal bands for extremely smooth trigger action.


OS3
Straight 100 Resistor
$20.00

OS3 Straight 100 Resistor

Straight resistors are wrapped evenly across the resistor and feature a linear response.
Made with one continuous wire, so there are no gaps in the power band.   They have fresh tabs for easy mounting and ground,
feathered and smoothed metal bands for extremely smooth trigger action.


OS3
Magnet Matcher
$54.95
































Magnet Matcher


What is the OS3 Magnet Matcher?

The OS3 Magnet Matcher is a simple low-cost battery-operated tool that allows you to compare the strength and polarity of all ceramic magnets from Tjets to most LifeLikes to be read on a common voltmeter that you provide.   With the addition of plastic spacers it can be modified to read all magnets.

Why should you own an OS3 Magnet Matcher?

Having a calibrated gauss meter is ideal. It will read a wide range of magnets while providing an accurate gauss reading. They will also cost about 400 dollars for a baseline unit. Sending all your magnets out to someone who has one of the meters will provide you with the gauss readings too. BUT not all gauss meters will give the same reading for the same magnet. This fact means that you have to have all your magnets tested by that same meter to be accurate. Once you drop a magnet or run it in a motor that ran hot, you canít be sure what the gauss reading is anymore. Bottom line is that the gauss reading isnít important, being able to accurately and promptly compare your magnetsí strengths against one another is. Another useful feature is that you determine how to read your magnets. Professional magnet testers will provide you with an average reading of the strength of your magnet. Your magnet may have strong and weak spots or may be even all around, but you will never know. With your OS3 Magnet Matcher, you will never rely on someone else again to test your magnets.

How to use your OS3 Magnet Matcher.

Your OS3 Magnet Matcher is simple to use. Turn your meter on to DC Volts. Set it to the 2 Volt scale if your meter is not auto-ranging. Insert the red and black leads into the same color jacks on the MM. Turn the MM on by turning the knob clockwise. Continue turning the knob clockwise until the meter reads .000. Use one hand to hold the MM and the other to place your magnet in the desired position over the sensor and read your strength. The sensor range can be increased by placing the spacer over the sensor. The range can be further increased by placing a bigger piece of plastic between the magnet and the sensor. A higher number indicates the magnetic strength is stronger at that point. Positive readings indicate North pole magnets while negative readings indicate South poles.

When should you replace the battery?

The OS3 Magnet Matcher doesnít have an indicator to show when the battery is low. The MM requires very little power so as long as the power is turned off after use the battery will last quite a long time. When you believe your battery is dying use your meter to check the battery voltage while the MM is on. As long as the voltage is at least 6.5 VDC, the MM will function properly.

Proper care for your OS3 Magnet Matcher

  1. 1. Ensure the battery is inserted correctly. Reversing the connection may damage the MM. 2. Only connect the output to a high resistance meter. Any meter you can buy will fit this requirement. Use of the output for any other purpose may damage the MM. 3. Take care in transporting or holding the MM while the meter leads are inserted. The lead jacks are designed for providing a reading and not structural rigidity.

General Notes

  1. This unit is a non-calibrated unit and is used for making comparisons only. It will not provide an accurate gauss reading.
  2. Tjets, AFX, MT and JL/AW have North poles magnets in the front. Green magnets are always North pole.
  3. The MMís sensor is not in any particular position which allows a wide range of magnet types to be tested. Just setting a magnet in front of the sensor will not yield useful results.
  4. The sensor is most sensitive in the middle of the square on the front.

OS3 Lightning Rod
Yellow
$0.95 ea

OS3 Lightning Rods

These Guide Pins combine the best features of the OS3 Thunderpin and Johnny Lightning pin into one "Perfect" pin.   Lightning Rods feature a beveled hole for 1/72 screws so the pin does not have to be dug out to allow for body roll.   It also has a "Nub" on the back that press fits into the back chassis hole to lock the pin in place and prevent lateral pressure from breaking the pin free.   The nub is aided by a full size pin that fills the entire guide pin pocket.   The back of the pin is "Rough Finished" so scuffing prior to glueing is unnecessary.   The Lightning Rod will fit most chassis perfectly.   But all chassis have different size guide pin pockets.   Some chassis like the 7-9 require the pin to be slightly sanded to fit while the 6 and H chassis will have a little room around the pin.   For the popular 10-14 and A-F chassis the fit is awesome.   When inserting the pin remove all glue with an acetone or nitromethane based super glue remover to aid in fitment.   Use of Devcon Rubber Adhesive is ideal as it holds great and can be removed easily allowing quick replacement.


OS3 Lightning Rod
Yellow
$0.95 ea

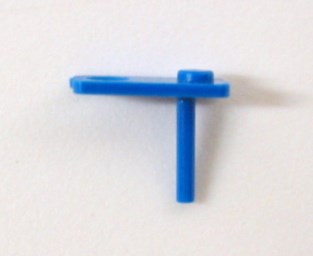

OS3 Lightning Rod
Blue
$0.95 ea


OS3 Lightning Rod
Black
$0.95 ea
Out of Stock
