DR-1 HO Scale Slot Car Chassis


Please note that all chassis must be lubricated with a light oil at the pivot points before use.
(Armature bearings, front and rear axles and gears / See schematic for lube points - in red)

The DR-1 is an in-line motor replacement chassis for the 4-gear chassis from Aurora / AFX and Auto World


Dr-1Chassis
Designed to fit 4-Gear bodies,
including AW and AFX.


Exploded View

JAG Hobbies DR-1 chassis feature the following:

- Silicone front and rear tires (medium hardness)
- Stainless steel axles
- Plastic dual guide pin
- Neodymium traction magnets (N30)
- Polymer motor magnets
- Phosphor Bronze pick-up Shoes
- Delrin gears (7T Pinion / 25 T Crown)
- 6 Ohm armature
- Includes front body screw and spare guide pin

DR-1 Wheelbase: 1.540" (39.1 mm) / 1.663" (42.2 mm) / 1.790" (45.5 mm)

Front wheels are adjustable.

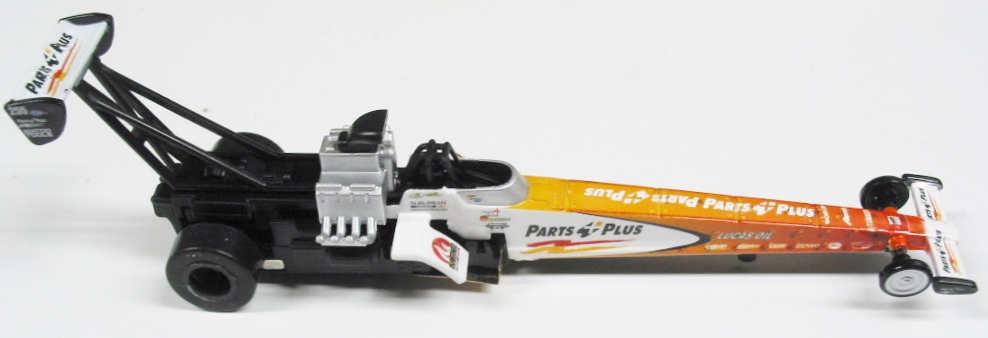

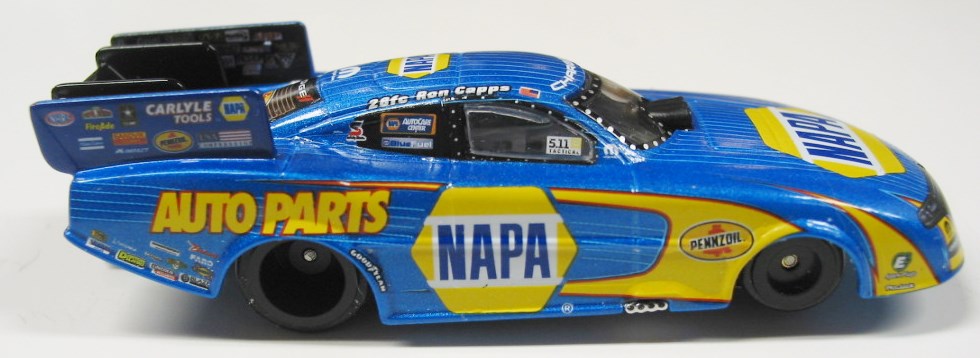

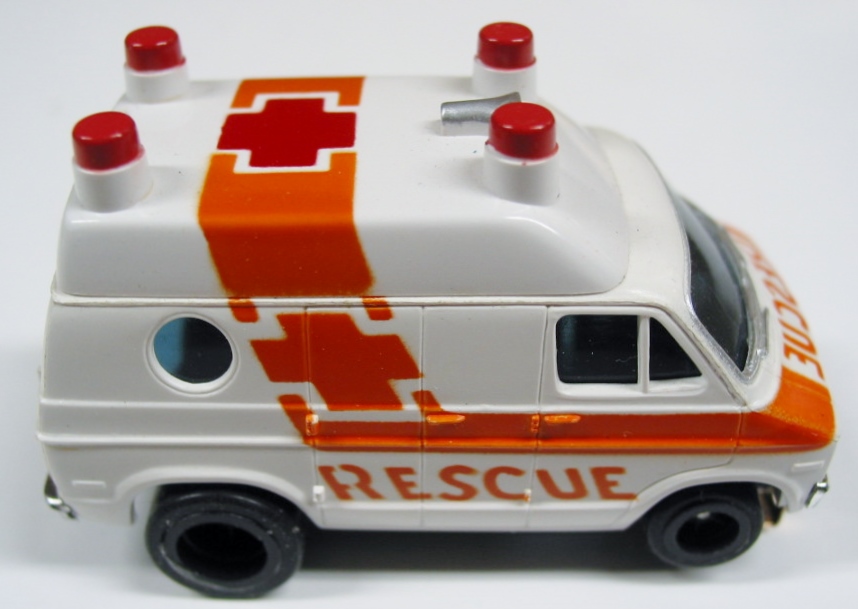

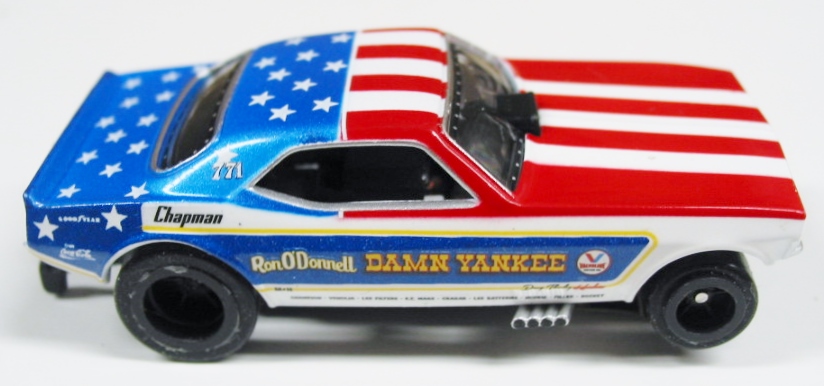

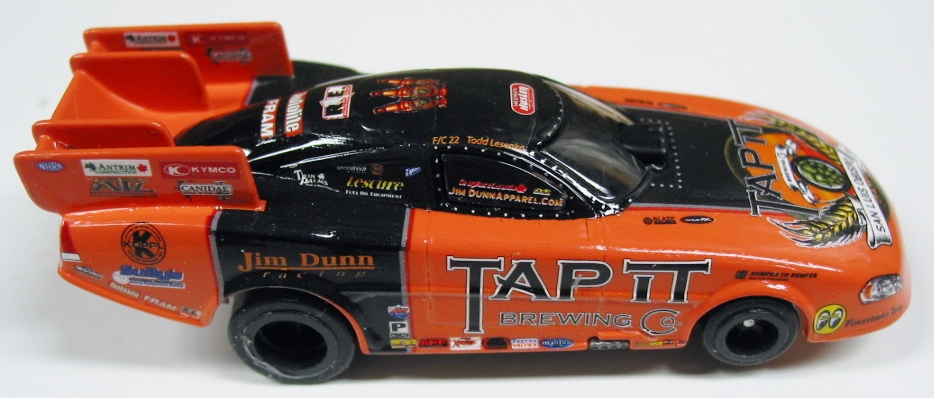

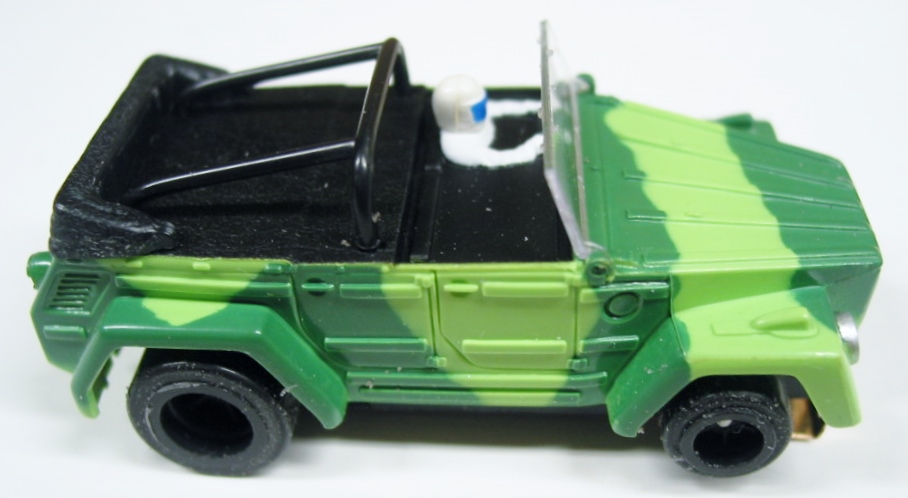

Various Bodies on DR-1 Chassis

Please note that the stock body clip on the DR-1 fits best with the Legends bodies from Auto World.

Body Clip Information
#30-0022A - Fits best with AW Legends, TFD and AFX Van Bodies
#30-0022B - Fits best with AFX Narrow Bodies where body clip interferes
#30-0022C - Fits best with AW Pro Stock Bodies (wider clip)
#12-0024A - Eliminates the rear part of the clip

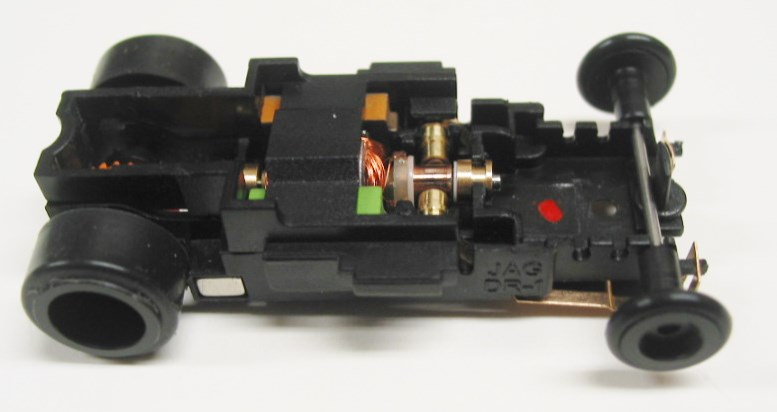

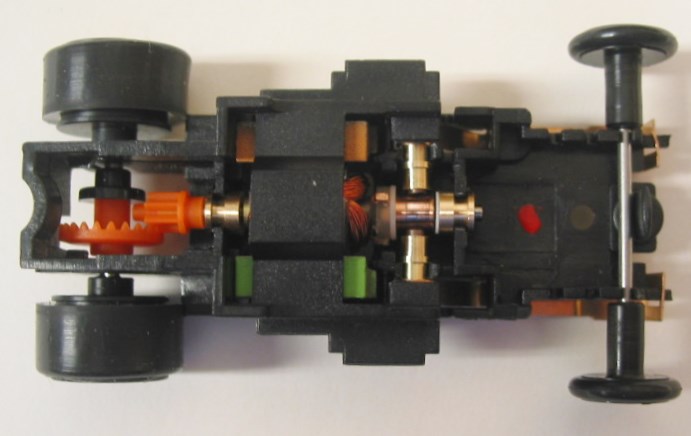

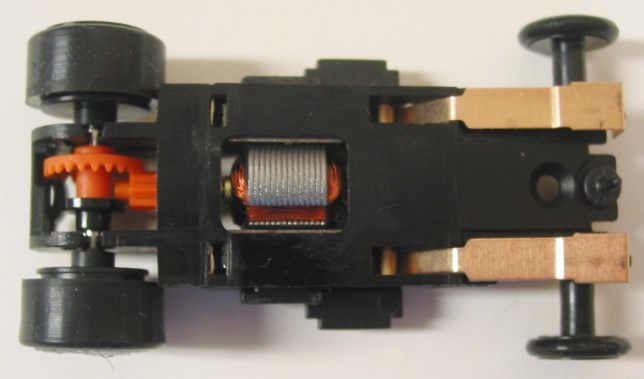

DR-1 GT Chassis

 JAG Hobbies DR-1 / GT chassis feature the following:

- Silicone rear tires (Medium hardness)
- Stainless steel axles
- Plastic guide pin)
- Neodymium traction magnets (N45)
- Polymer motor magnets (100% stronger than stock)
- Phosphor Bronze pick-up Shoes
- Hop-Up gears (7T Pinion / 23 T Crown)
- 3.5 Ohm armature
- Includes front and rear body screws

Front wheels are adjustable.



New body clips to drop your body!  Will require the slim chassis and dropped clip to fit as shown.

(Body will require modifications to fit wheels.)


Some bodies may require modification or spacers to fit properly.
Designed and assembled in the USA with foreign and domestically sourced parts.
All comments and criticisms are gladly accepted.
 Please click here to submit comments.

Note:  This chassis contains small parts and is recommended for ages 16+.
