DR-1 HO Scale Slot Car Chassis

Please note that all chassis must be lubricated with a light oil at the pivot points before use.
(Armature bearings, front and rear axles and gears / See schematic for lube points - in red)

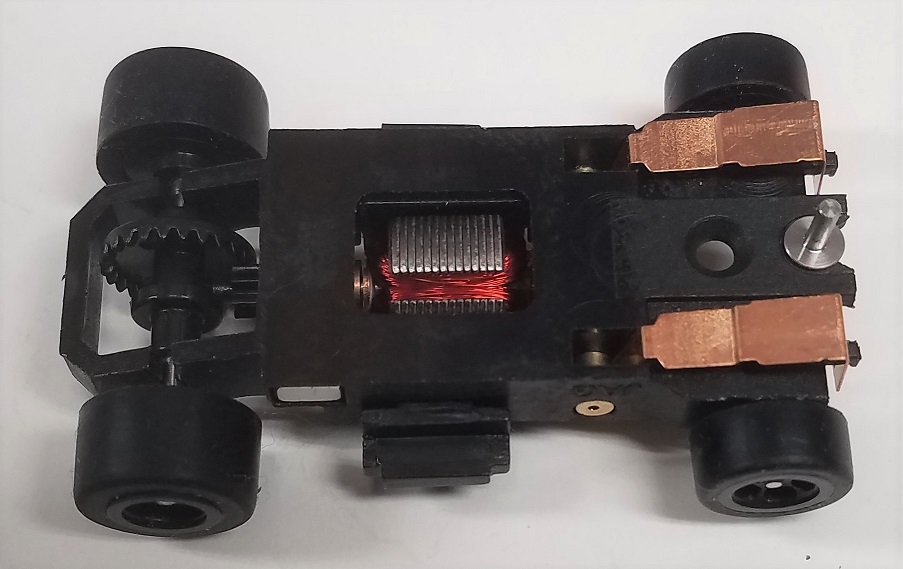

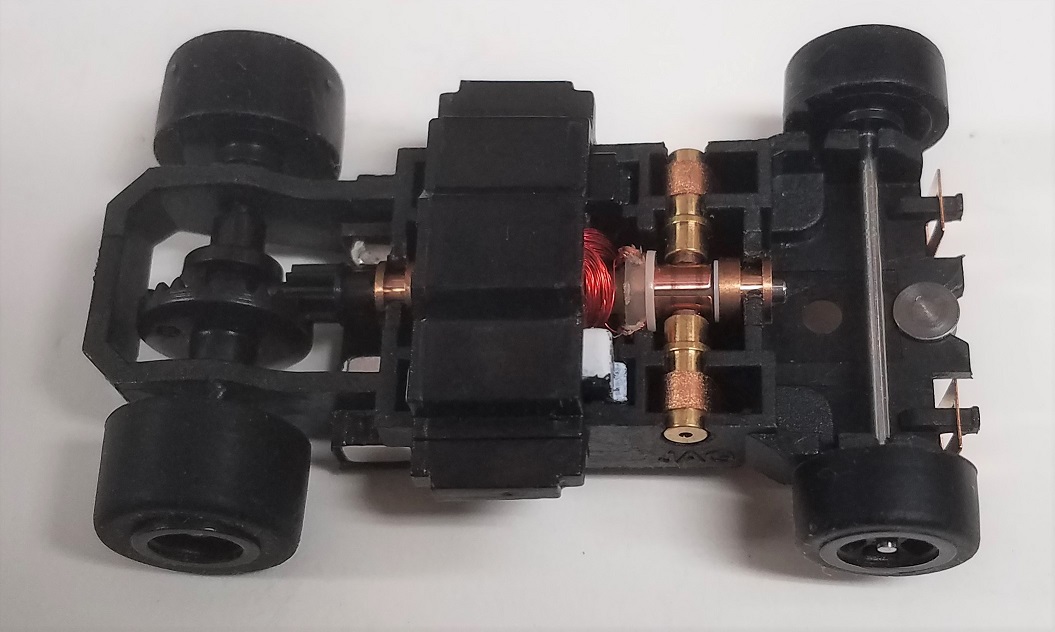

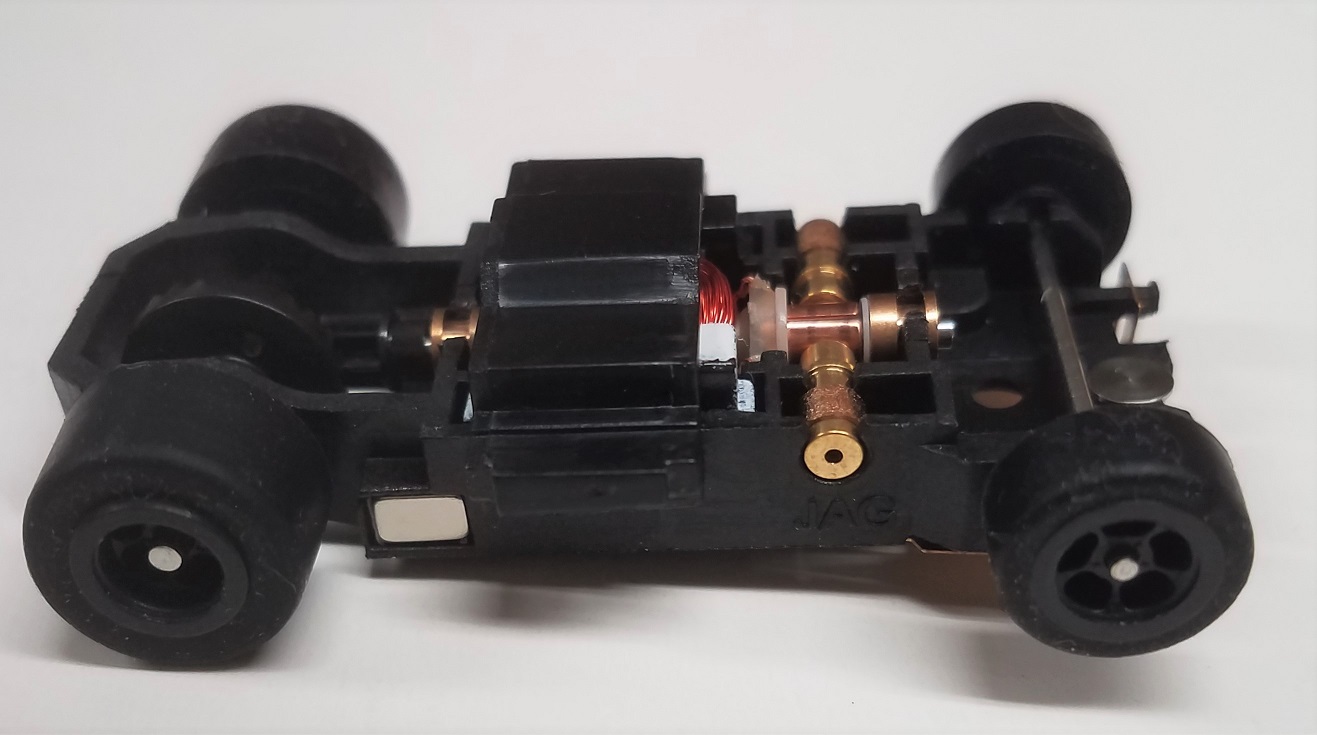

The NC-2 is an in-line motor replacement chassis for the AFX, Tomy, Tyco, Super III and Life-Like chassis*
(* with proper clips, chassis ships with AFX body clip)








JAG Hobbies NC-2 chassis feature the following:

- Silicone front and rear tires (medium hardness)
- Stainless steel axles
- Plastic dual guide pin
- Neodymium traction magnets (N30)
- Polymer motor magnets
- Phosphor Bronze pick-up Shoes
- Delrin gears (7T Pinion / 25 T Crown)
- 6 Ohm armature

NC-2 Wheelbase:

Front wheels are adjustable.

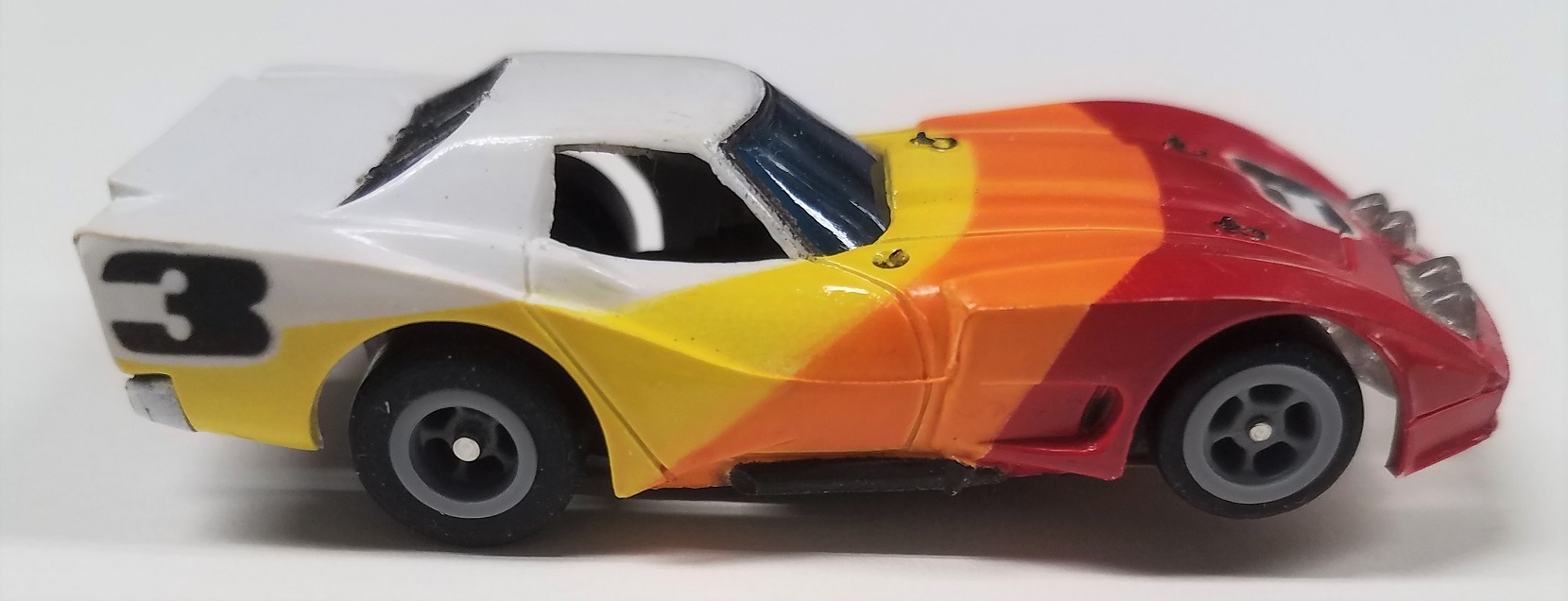

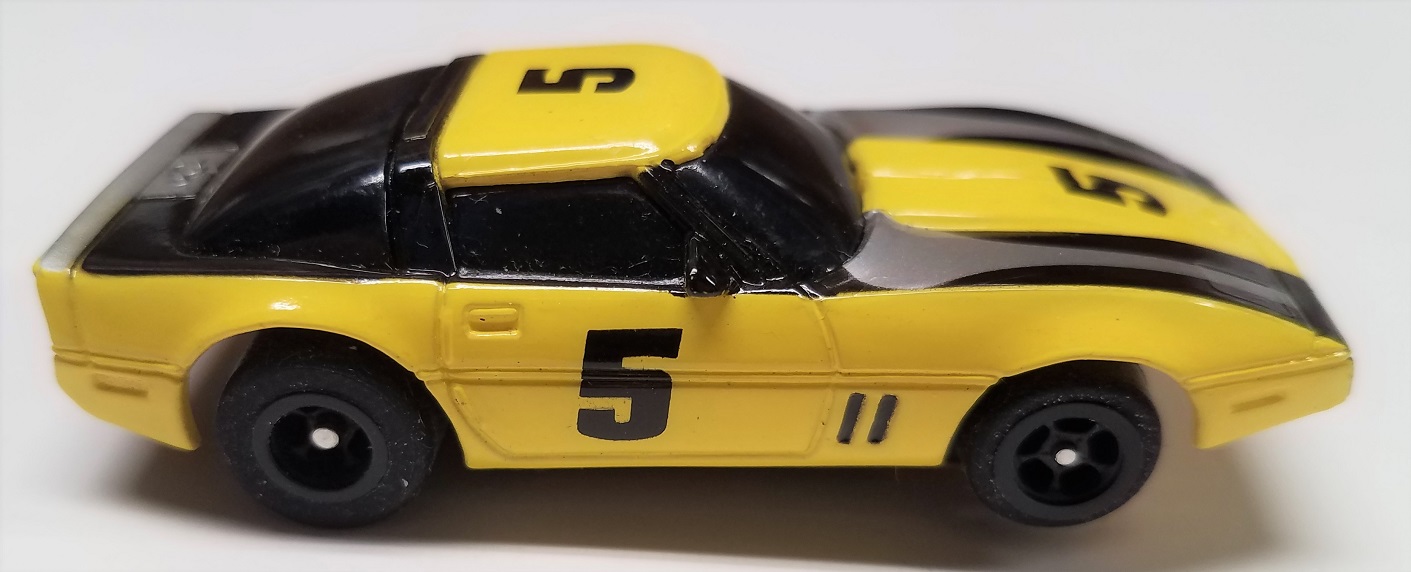

AFX Corvette Body on NC-2 Chassis
(Using standard AFX Clip / #40-0024A)

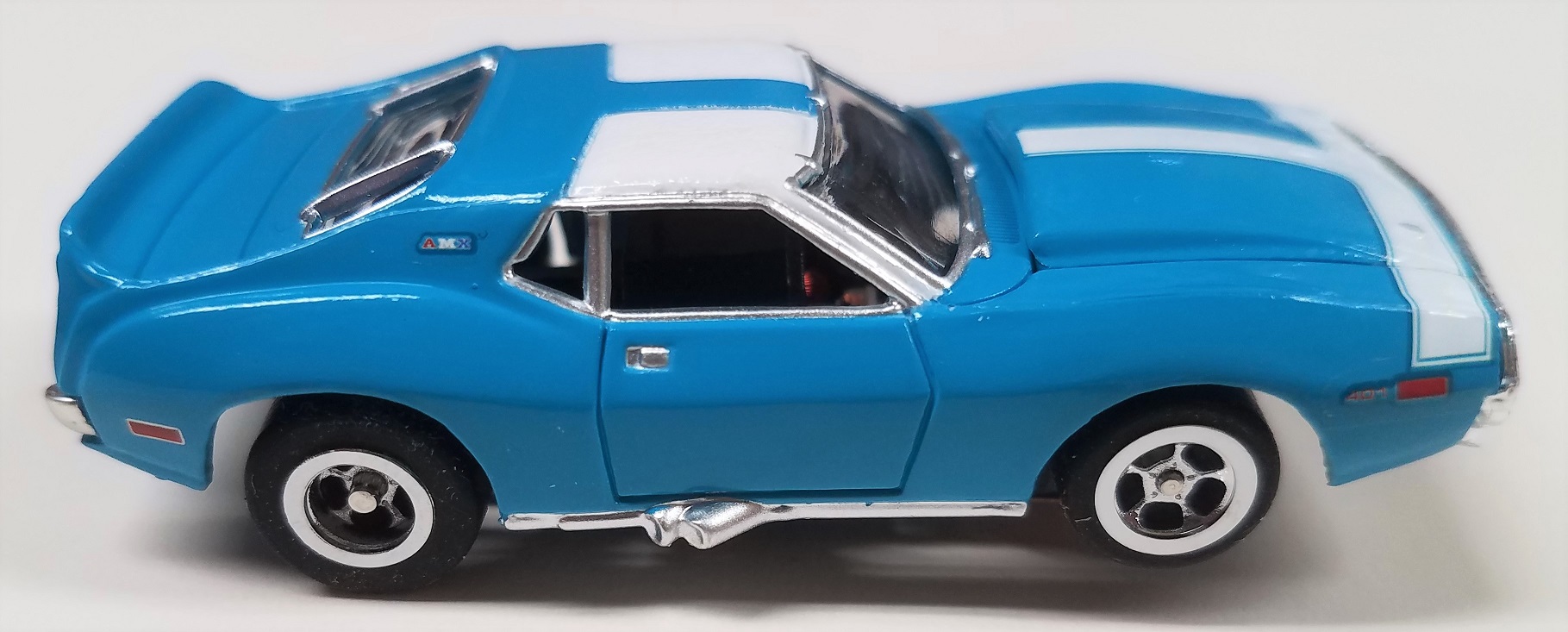

AW Javelin Body on NC-2 Chassis
(Using standard AFX Clip / #40-0024A)

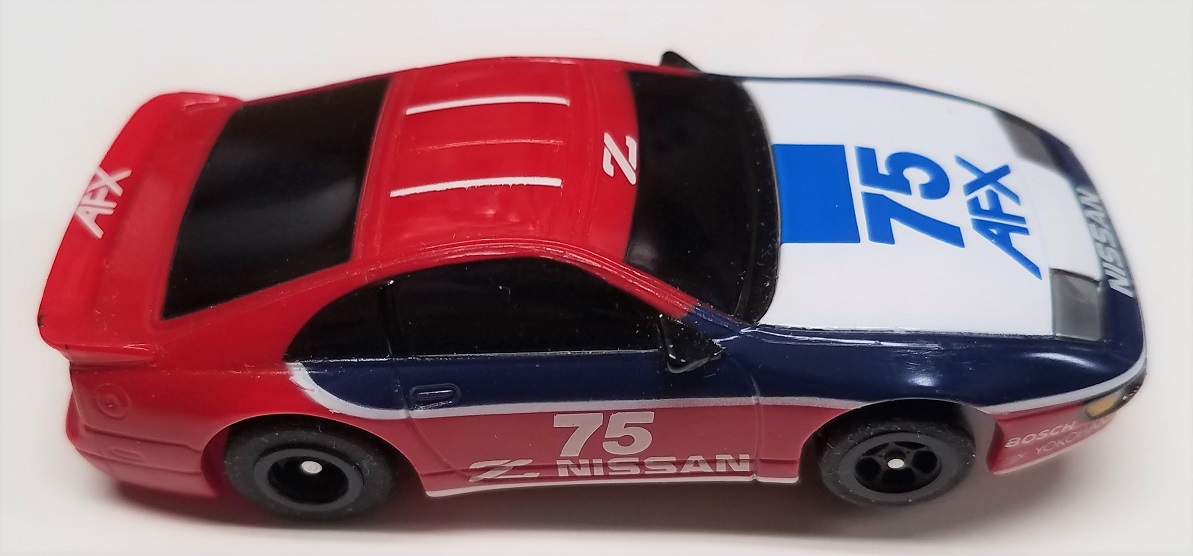

Tomy Body on NC-2 Chassis
(Requires Tomy Clip / #40-0024B)

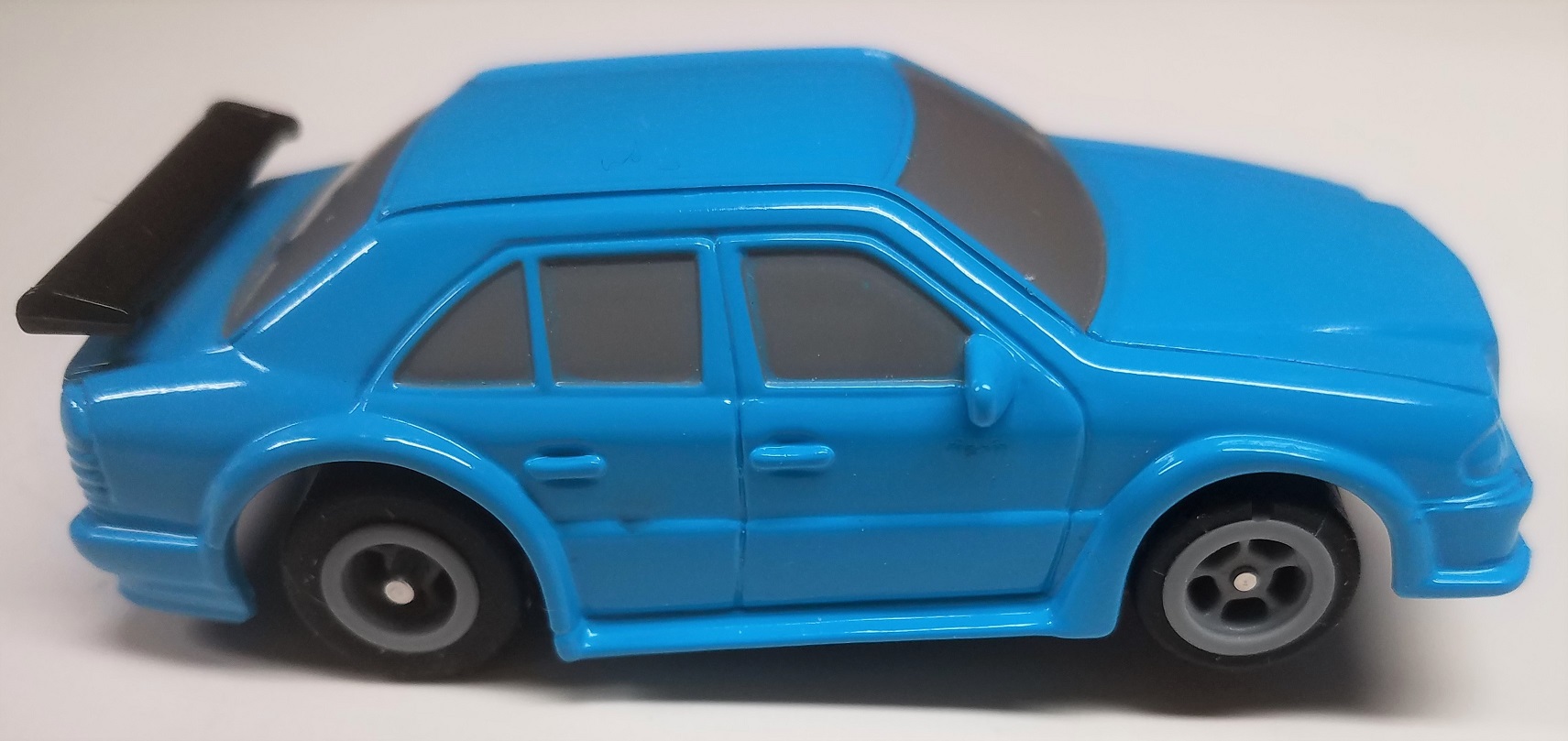

LL Body on NC-2 Chassis
(Requires LL Clip / #40-0024C)

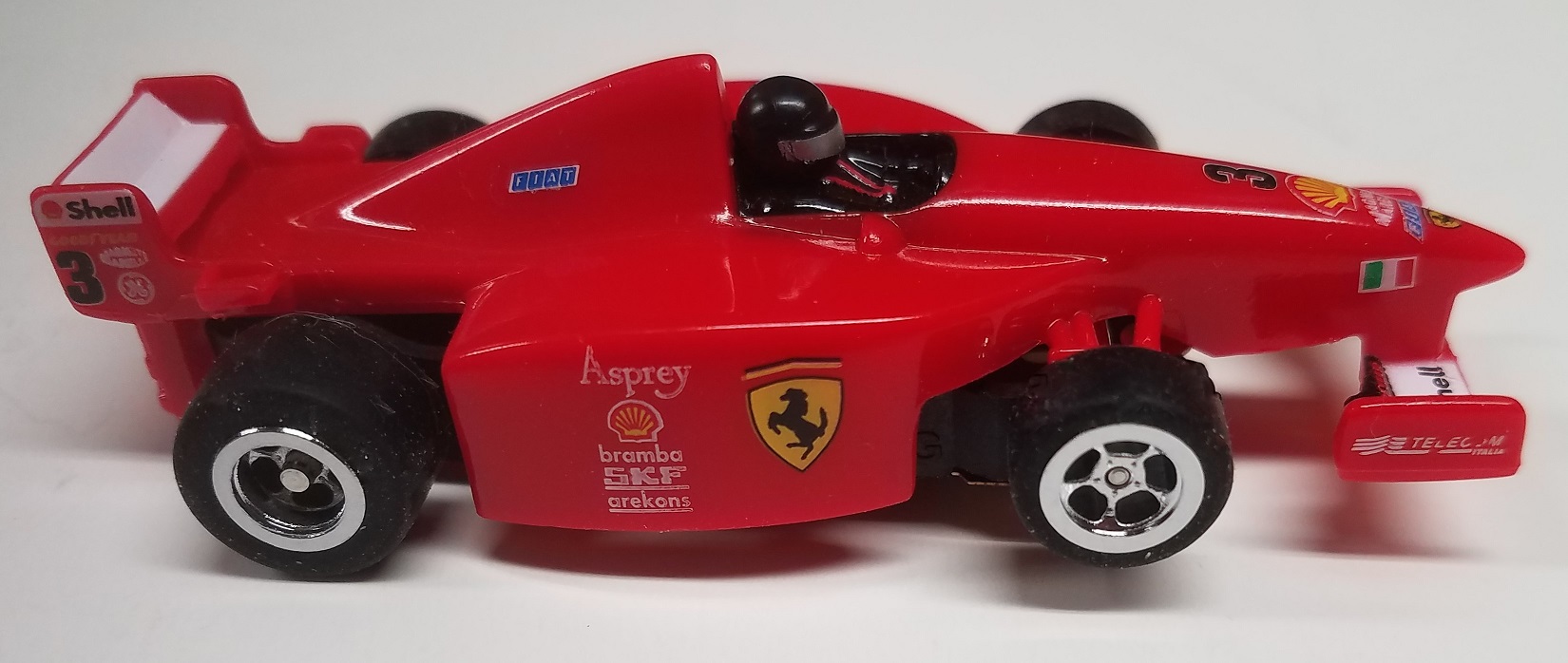

Tyco Indy Body on NC-2 Chassis
(Requires Tyco / Narrow Clip / #40-0024D)

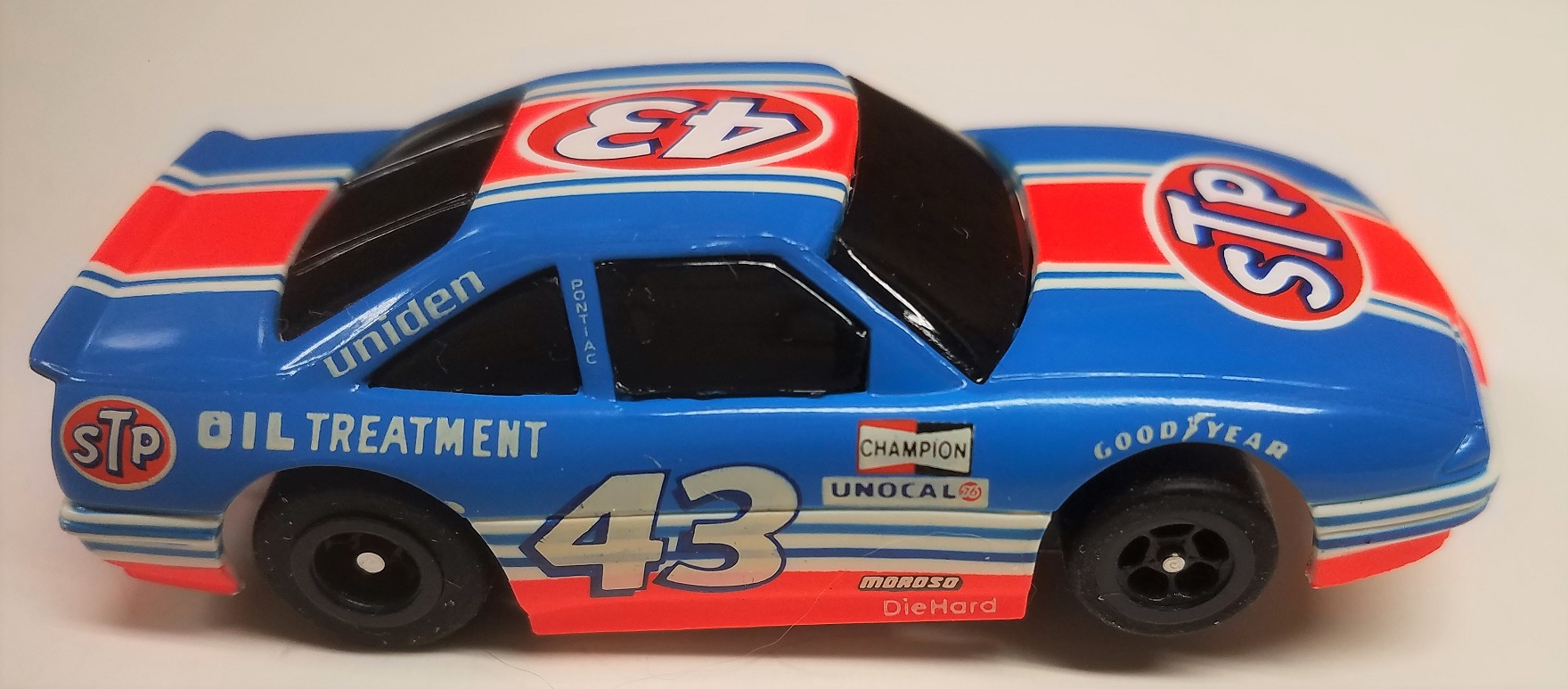

Tyco Wide Body on NC-2 Chassis
(Requires Tyco / Wide Clip / #40-0024E)

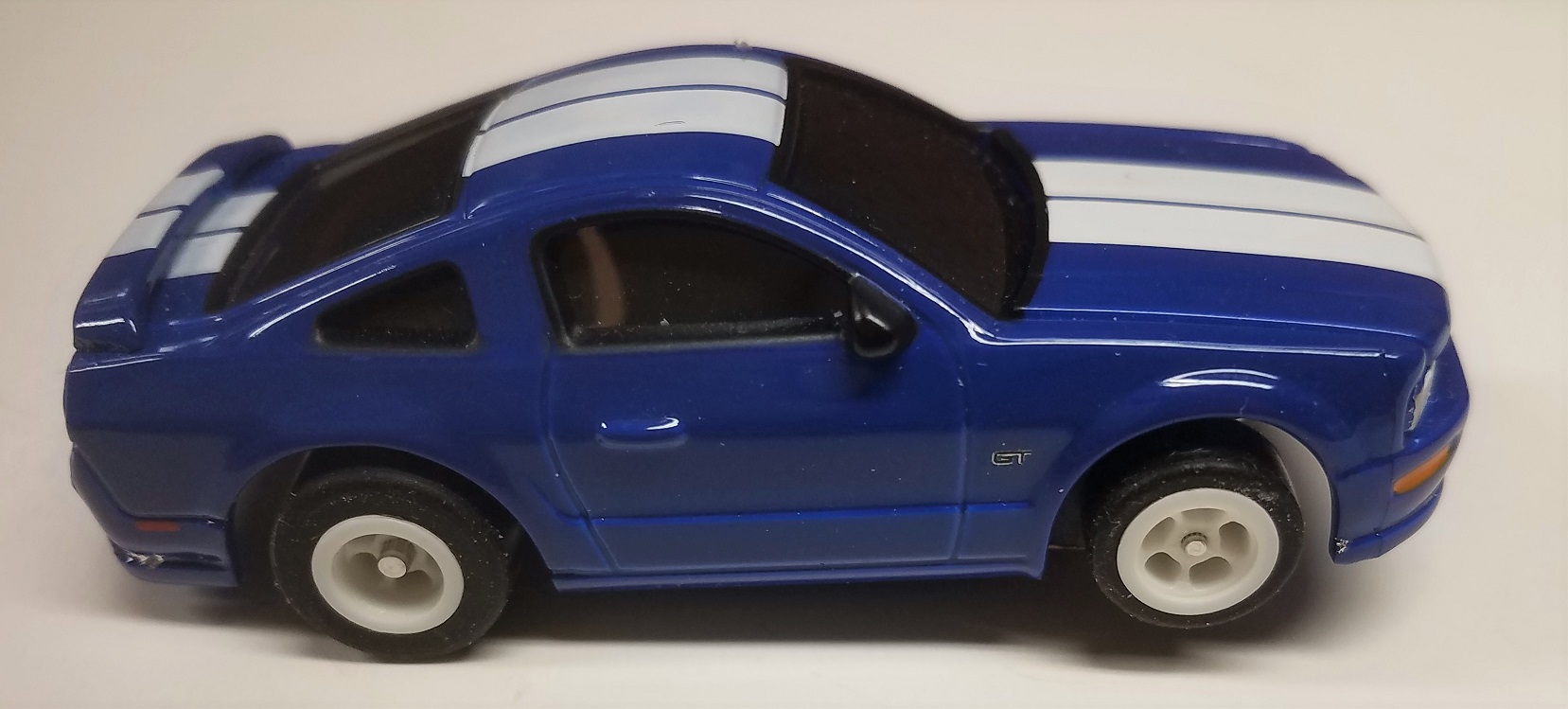

Super III Body on NC-2 Chassis
(Requires Super III Clip / #40-0024F)


Life-Like Body on NC-2 Chassis
(Requires Life-Like Clip / #40-0024C

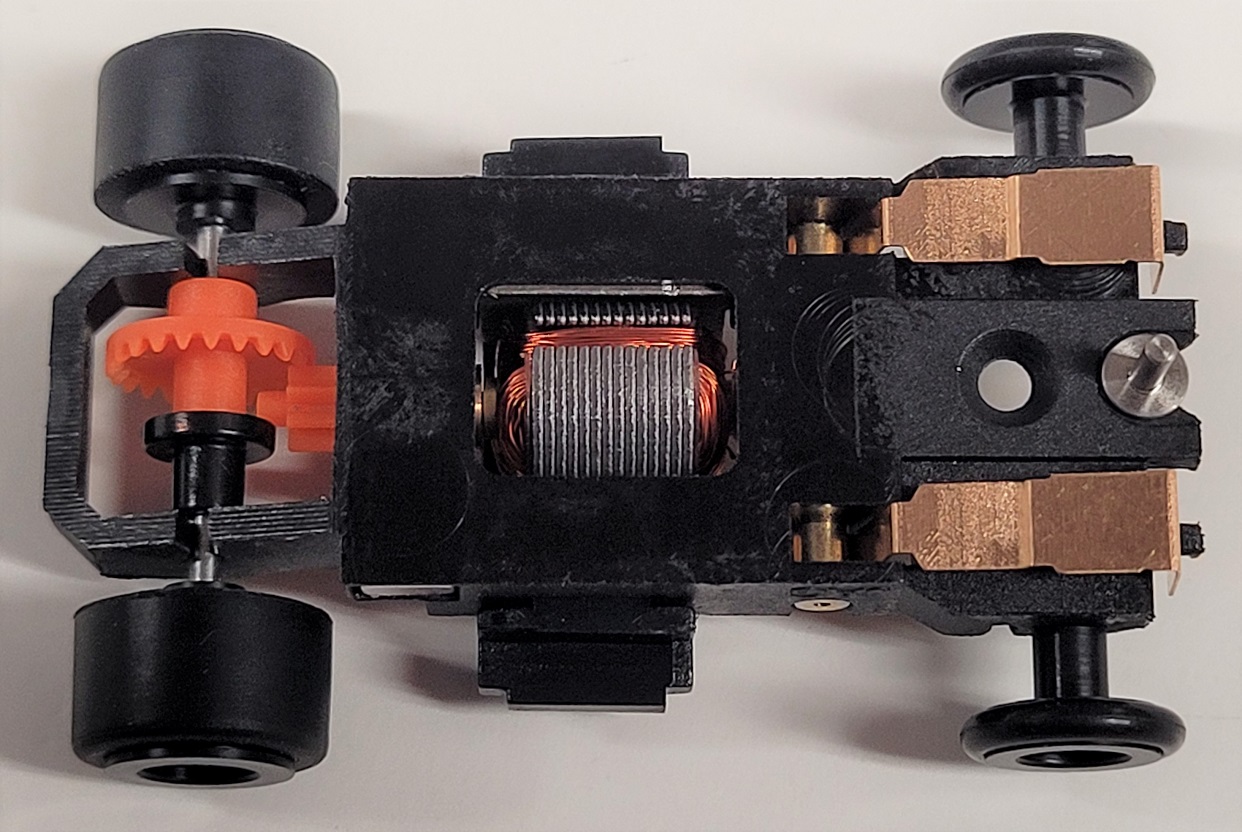

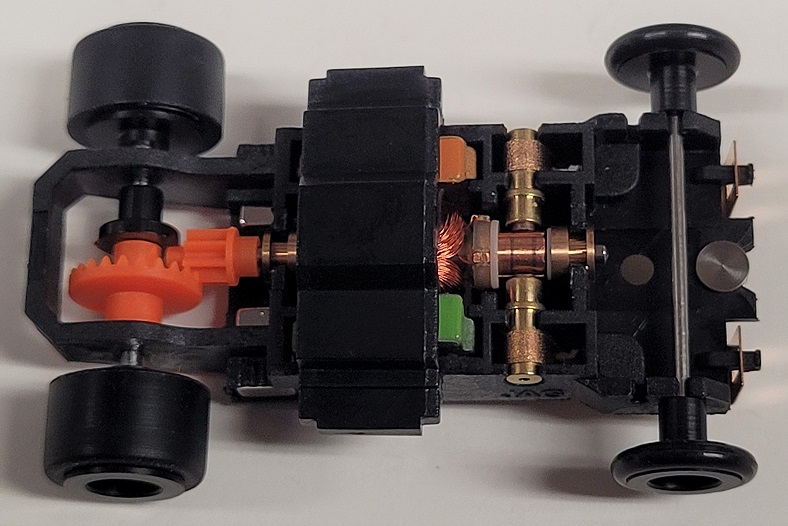

JAG Hobbies NC-2 / GT chassis feature the following:

- Silicone rear tires (Medium hardness)
- Stainless steel axles
- Stainless steel guide pin (plastic included)
- Neodymium traction magnets (N45)
- Polymer motor magnets (100% stronger than stock)
- Phosphor Bronze pick-up Shoes
- Hop-Up gears (8T Pinion / 23 T Crown)
- 3.5 Ohm armature
- O'Ring Front End
- Double Flanged Rear Wheels

NC-2 Wheelbase:

Front wheels are adjustable.





Some bodies may require modification or spacers to fit properly.
Designed and assembled in the USA with foreign and domestically sourced parts.
All comments and criticisms are gladly accepted.
Please click here to submit comments.

Note:  This chassis contains small parts and is recommended for ages 16+.
