Please note that all chassis must be
lubricated with a light oil at the pivot points before use.
(Armature bearings, front and rear axles and gears / See
schematic for lube points - in red)
|
|
The RS-6 is an in-line motor replacement chassis
for the AFX 1.5 chassis with new mounting
|
|
 |
JAG Hobbies RS-6 chassis feature the following:
- Silicone front and rear tires
- Stainless steel axles
- Steel Guide Pin
- Neodymium traction magnets (N30)
- Polymer motor magnets
- Bronze pick-up Shoes
- Delrin gears (7T Pinion / 25 T Crown)
- 6 Ohm armature
Front wheels are adjustable. |

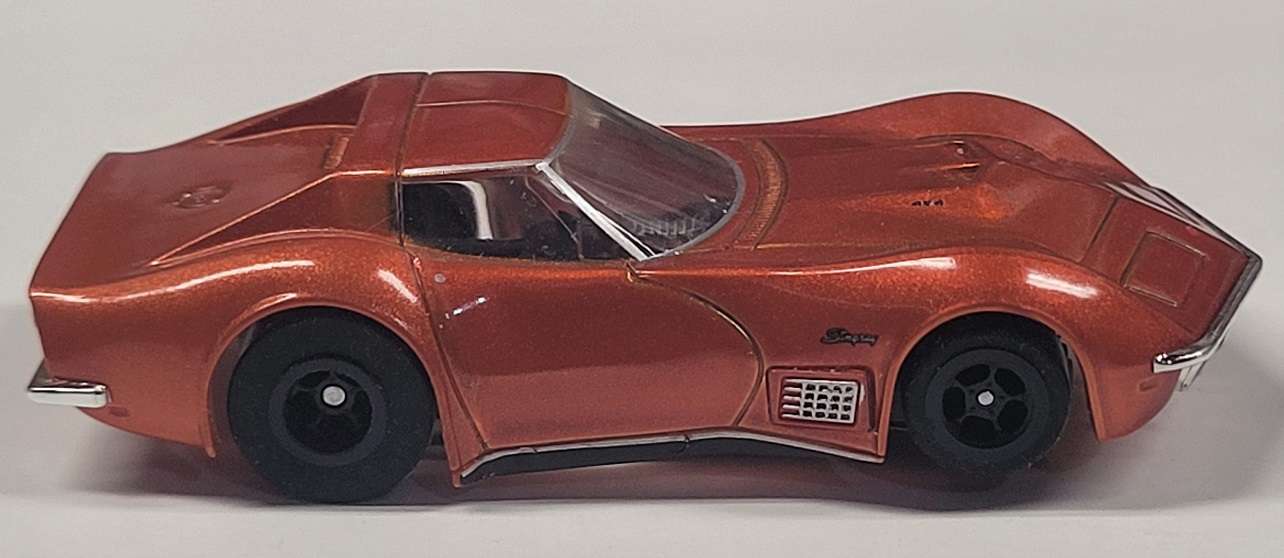

AFX 1971 Corvette 454 |

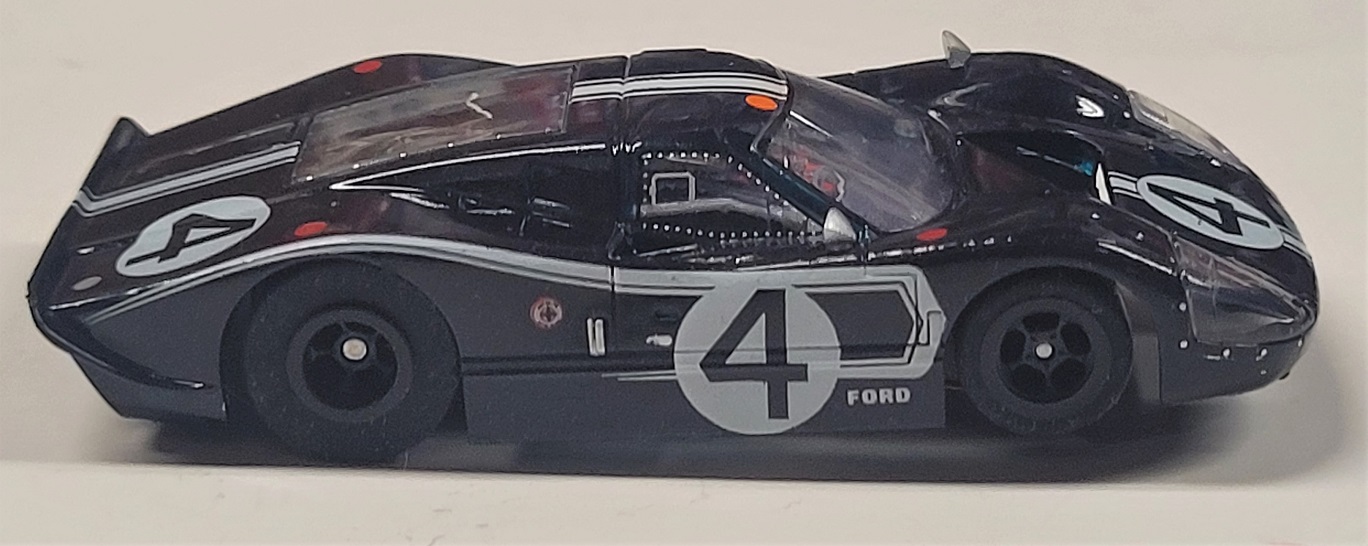

AFX Ford GT40 MKIV |
|
|
JAG Hobbies RS-6 GT chassis feature the following:
- Silicone front and rear tires
- Stainless steel axles
- Independent O'Ring Front End
- Double Flanged Rear Wheels
- Steel Guide Pin
- Neodymium traction magnets (N45)
- Polymer motor magnets (H/U -3)
- Bronze pick-up Shoes
- H/U gears (8T Pinion / 23 T Crown)
- 3.5 Ohm armature
Front wheels are adjustable. |
|
|
