Available in 3 configurations:
 |
 |
 |
| Standard -
Lower RPM Motor with resistor |
HP -
Higher RPM Motor |
M1 - HP
with Traction Magnet |
| Use with
120 Ohm Controller |
Use
Electronic controller or standard for drag racing |
Use
Standard Controller |
| |
|
Single,
removable, traction magnet for best overall performance |

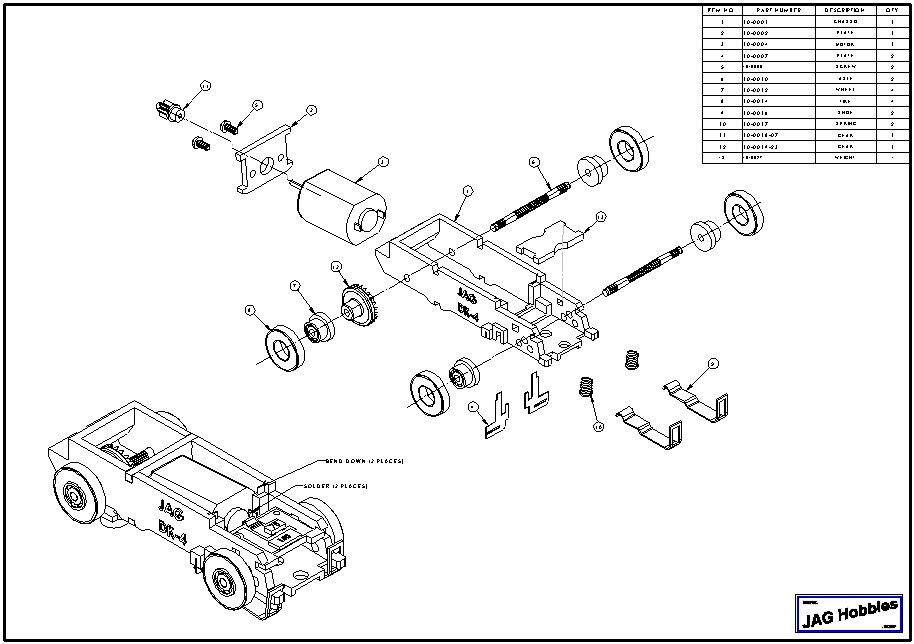

DK-4 Chassis - A new can motor
style T-Jet chassis
Compatible with all AW, Dash, RRR and Aurora bodies
Narrower than the standard Aurora T-jet
chassis allows more flexibility with bodies.
Can motor reduces maintenance.
The High Performance chassis uses a
motor that is 70% faster that standard.
JAG Hobbies DK-4 chassis feature the following:
- Silicone front and rear tires
- Stainless steel axles
- n20 motor
- Phosphor Bronze pick-up Shoes
- Delrin gears (7T Pinion / 25 T Crown)
Voltage range - 6 to 24 volts
(HP chassis, as built, runs best at 12 volts, tires are too small for higher
voltage)
Axles, wheels and tires tires are compatible with a standard Aurora T-Jet chassis.
Chassis are sold in short and long wheelbase but all chassis are adjustable.
Wheelbase - 32.4 mm (1.28") /
35.8 mm 1.41"
|
