Exploded View

JAG-TR-3 Chassis Parts


Bare TR-3 Chassis
#12-0001B
$6.00

Traction Magnets - N30
#12-0002A
$2.50 (pr)

Stainless Steel
Guide Pin
#12-0003A
$1.50

Stainless Steel
Dual Guide Pin
(Will not work on TR-3 with
axle in the back location)

#12-0003D
$1.50

Stainless Steel
Guide Pin - Short
(Made for Aurora Track)
#12-0003S
$1.50

Plastic
Guide Pin
Black
#30-0003B
$0.75


Plastic
Guide Pin
White
#30-0003W
$0.75

Plastic
Guide Pin
Chrome
#30-0003C
$0.75

Plastic
Guide Pin
Grey
#30-0003G
$0.75

(Click Here for Info)
Stainless Steel
Body Post Guide Pin
#2-56 x 1/4" Thread
#12-0003BL
$1.75

(Click Here for Info)
Stainless Steel
Body Post Guide Pin
#2-56 x 1/4" Thread
#12-0003BS
$1.75

(Click Here for Info)
Body Post Guide Pin
Installation Tool
#TL-0001
$5.00


5 Stainless Steel Body
Post Guide Pins (long)
with Tool
#PK-0001L
$12.00

5 Stainless Steel Body
Post Guide Pins (short)
with Tool
#PK-0001S
$12.00

Plastic
Guide Pin
#30-0003
$0.75

Armature
6 Ohm
#12-0004A
$4.50

Armature Bearings
#12-0005
$2.50

Motor Magnets
1150 Gauss
#12-0006-1
$4.00 (pr)


Brush Tubes
#12-0007
$2.00 (pr)

Brush Springs
#12-0008
$1.00 (pr)

Brushes
#12-0009
$1.00 (pr)

Rear Axle
#12-0010
$1.50

Front Axle
#12-0011
$1.50

Rear Wheels - Black
#12-0012B
$1.50 (pr)


Rear Wheels - Chrome
#12-0012C
$1.50 (pr)

Rear Wheels - Grey
#12-0012G
$1.50 (pr)

Rear Wheels - White
#12-0012W
$1.50 (pr)

Front Wheels - Black
#12-0013B
$1.50 (pr)

Front Wheels - Chrome
#12-0013C
$1.50 (pr)

Front Wheels - Grey
#12-0013G
$1.50 (pr)


Front Wheels - White
#12-0013W
$1.50 (pr)

Front SiliconeTires
Medium (40A) / Black
#12-0014-MB
$1.25 (pr)

Rear Silicone Tires
 Medium (40A) / Black
#12-0015-MB
$1.50 (pr)

P/U Shoes
Brass
#12-0016A
$1.25 (pr)
$0.50 (pr)

P/U Shoes
Phosphor Bronze
#12-0016B
$1.50 (pr)

P/U Shoes
Phosphor Bronze
#12-0016B-10
$12.50 (10 pr)


P/U Shoe
Springs
#12-0017
$1.25 (pr)

P/U Shoe
Springs
Soft - 0.007"
#12-0017-S
$1.25 (pr)

Pinion Gear
7T - Black
#12-0018B
$1.00

Pinion Gear
7T - White
#12-0018W
$1.00




Crown Gear
25T - Black
#12-0019B
$1.25


Crown Gear
25T - White
#12-0019W
$1.25


Gear Spacer
Black
#12-0020B
$0.75

Gear Spacer
White
#12-0020W
$0.75

Front Body Screw
#2-32 x 1/4" Long
Phillips Flat Head
#12-0021-1
$0.10

Front Body Screw - Long
#2-32 x 3/8" Long
Phillips / Flat Head
#12-0021-2
$0.10

Front Body Screw
#2-56 x 1/4" Long
Phillips / Flat Head
#12-0021-3
$0.10

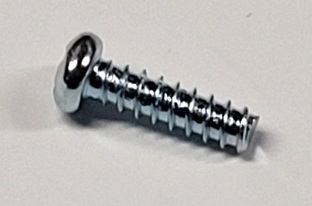

Rear Body Screw
#2-32 x 1/4" Long
Phillips Head
#12-0022A
$0.10


Rear Body Screw
Slotted Head
#2-32 x 1/4" Long
#12-0022B
$0.10

Rear Body Screw
Phillips Head
#2-56 x 5/32" Long
#12-0022C
$0.10

Magnet Clip
#12-0024A
$1.50

Metal Magnet Clip
#12-0024B
$0.75

Body Spacer
0.032" Thick
#30-0025A
$0.10 ea.

Body Spacer
0.062" Thick
#30-0025B
$0.10 Ea

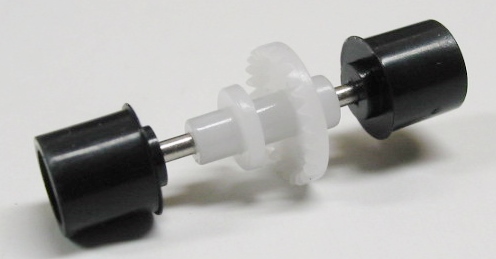

Rear Axle Assembly
Black
#12-0112B
$5.00

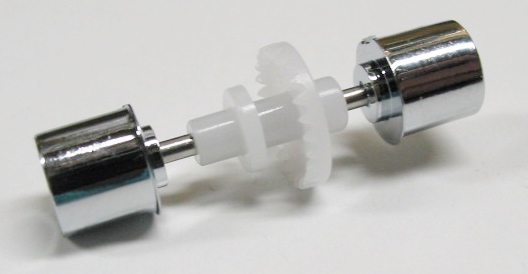

Rear Axle Assembly
Chrome
#12-0112C
$5.00

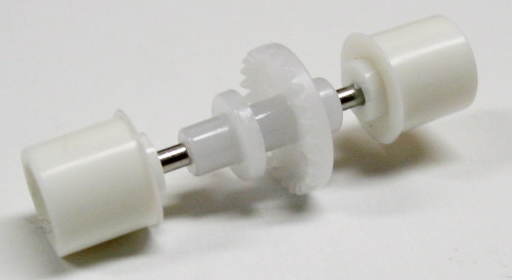

Rear Axle Assembly
White
#12-0112W
$5.00

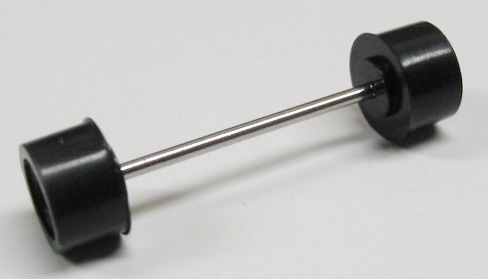

Front Axle Assembly
Black
#12-0113B
$3.00

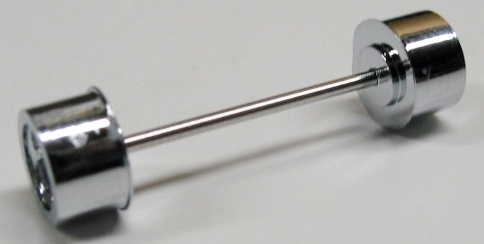

Front Axle Assembly
Chrome
#12-0113C
$3.00

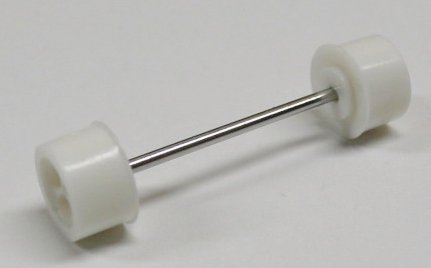

Front Axle Assembly
White
#12-0113W
$3.00


Click here for hop-up parts
